山東MNS低壓抽屜柜，抽屜帶負荷插拔怎么防？原理超簡單

　　How to prevent loading and unloading of drawers in Shandong MNS low-voltage drawer cabinets? The principle is super simple

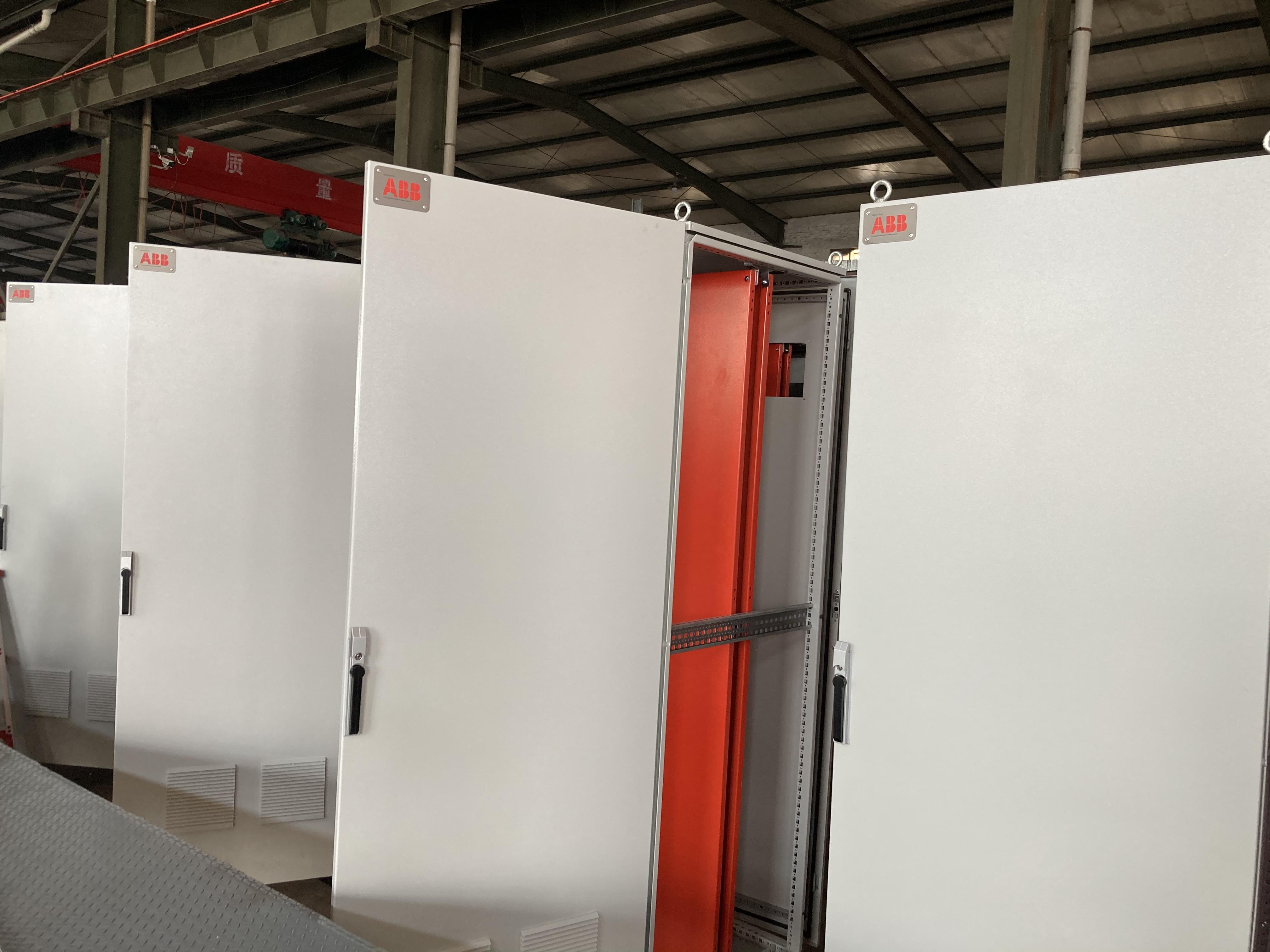

　　在山東的工廠車間、配電房等工業場景中，MNS低壓抽屜柜是很常見的配電設備。用過的人都知道一個關鍵特點：抽屜在分閘狀態下能輕松拉出來，可一旦合閘通電，就怎么也拉不動了。這其實是MNS低壓抽屜柜的核心安全設計——防止帶負荷插拔。很多人好奇這背后的原理，今天就以山東MNS低壓抽屜柜為例，給大家詳細科普，它是怎么通過簡單的結構設計，實現這個安全防護功能的。

　　In industrial scenarios such as factory workshops and distribution rooms in Shandong, MNS low-voltage drawer cabinets are common distribution equipment. People who have used it know a key feature: the drawer can be easily pulled out when it is in the open state, but once it is closed and powered on, it cannot be pulled anymore. This is actually the core safety design of MNS low-voltage drawer cabinets - preventing load insertion and removal. Many people are curious about the principle behind this. Today, taking Shandong MNS low-voltage drawer cabinet as an example, we will explain in detail how it achieves this safety protection function through simple structural design.

　　先給大家明確一個關鍵概念：帶負荷插拔為啥危險？MNS低壓抽屜柜里的抽屜通常裝著斷路器等核心配電部件，帶負荷插拔意味著在電路接通、有電流通過的情況下，強行插拔抽屜。這不僅會產生電弧，可能燒毀設備部件，還會引發短路、觸電等安全事故，對設備和操作人員都有出彩大風險。所以，防止帶負荷插拔是MNS低壓抽屜柜建議具備的安全保障，而山東本地廠家生產的MNS抽屜柜，大多采用了結構簡單卻異常可靠的機械聯鎖設計。

　　First, let me clarify a key concept for everyone: why is load swapping dangerous? The drawers in the MNS low-voltage drawer cabinet are usually equipped with core power distribution components such as circuit breakers. Load insertion and removal means forcibly inserting and removing the drawers when the circuit is connected and there is current passing through. This not only generates arcs and may burn equipment components, but also causes safety accidents such as short circuits and electric shocks, posing great risks to both equipment and operators. Therefore, preventing load insertion and removal is a necessary safety guarantee for MNS low-voltage drawer cabinets, and most of the MNS drawer cabinets produced by local manufacturers in Shandong adopt a simple yet exceptionally reliable mechanical interlocking design.

　　這個安全設計的核心，就靠三個關鍵部件：前面的操作手柄、連接手柄的連桿，以及抽屜下方的底板。原理其實非常好理解，我們一步步拆解來看。先看分閘狀態：當抽屜處于分閘時，前面的操作手柄處于特定的分閘檔位，連接手柄的連桿此時是抬起的，沒有和下方的底板產生干涉。這時候我們拉抽屜，沒有明顯阻礙，能輕松把抽屜拉出來進行檢修、更換等操作，完全不影響日常維護。

　　The core of this safety design relies on three key components: the front operating handle, the connecting rod connecting the handle, and the bottom plate under the drawer. The principle is actually very easy to understand, let's break it down step by step. First, let's take a look at the opening status: when the drawer is in the opening position, the front operating handle is in a specific opening position, and the connecting rod connecting the handle is lifted without interfering with the bottom plate below. At this point, we can easily pull out the drawer for maintenance, replacement, and other operations without any obstacles, without affecting daily maintenance.

　　再看合閘后的狀態，這也是防止帶負荷插拔的關鍵環節。當我們轉動操作手柄進行合閘操作時，手柄會帶動后面的連桿一起運動——具體來說，連桿會隨著合閘動作向下轉動。大家可以留意一下抽屜的下方，那里有一塊固定的底板，底板上專門打了一個匹配連桿的孔洞。當斷路器完全合閘、電路接通的瞬間，連桿會合理地插入到底板的這個孔洞里，形成牢牢的鎖定。

　　Looking at the state after closing, this is also a key step in preventing load insertion and removal. When we turn the operating handle to perform the closing operation, the handle will drive the connecting rod behind to move together - specifically, the connecting rod will rotate downward with the closing action. Everyone can pay attention to the bottom of the drawer, where there is a fixed bottom plate with a hole specially drilled to match the connecting rod. When the circuit breaker is fully closed and the circuit is connected, the connecting rod will be precisely inserted into this hole on the bottom plate, forming a firm lock.

　　這個鎖定結構有多可靠？一旦連桿插入底板的孔洞，就相當于給抽屜上了一把“安全鎖”。這時候再想拉抽屜，因?yàn)檫B桿被底板牢牢卡住，根本無法拉動。只有當我們再次轉動手柄，讓斷路器分閘，連桿才會從底板的孔洞里退出，鎖定解除后，抽屜才能正常拉出。簡單來說，就是通過“合閘-連桿下插鎖定-無法拉抽屜；分閘-連桿退出解鎖-可拉抽屜”的機械聯動，從結構上強制避免了帶負荷插拔的可能。

　　How reliable is this locking structure? Once the connecting rod is inserted into the hole on the bottom plate, it is equivalent to putting a "safety lock" on the drawer. At this point, I want to pull the drawer again because the connecting rod is firmly stuck by the bottom plate and cannot be pulled at all. Only when we turn the handle again to open the circuit breaker, will the connecting rod exit from the hole in the bottom plate, and the drawer can be pulled out normally after the lock is released. Simply put, it is a mechanical linkage that forcibly avoids the possibility of loaded insertion and extraction through the "closing connecting rod locking unable to pull drawer; opening connecting rod unlocking pulling drawer" process.

　　可能有人會問，為啥山東MNS低壓抽屜柜大多用這種機械設計，而不是電子設計？核心原因就是可靠。工業場景中，配電設備的安全性和穩定性是第一位的，機械聯鎖結構沒有復雜的電子元件，受環境影響小，哪怕在潮濕、多粉塵的車間環境里，也能穩定工作，不容易出現故障。而且這種設計成本可控，結構簡單，后期維護也方便，不管是廠家生產還是用戶使用，都很省心。

　　Some people may ask why Shandong MNS low-voltage drawer cabinets mostly use this mechanical design instead of electronic design? The core reason is reliability. In industrial scenarios, the safety and stability of power distribution equipment come first. Mechanical interlocking structures do not have complex electronic components and are less affected by the environment. Even in humid and dusty workshop environments, they can work stably and are less prone to malfunctions. Moreover, this design has controllable costs, simple structure, and easy maintenance in the later stage, making it worry free for both manufacturers and users.

　　總結下來，山東MNS低壓抽屜柜防止帶負荷插拔，靠的就是“手柄-連桿-底板”的機械聯鎖設計，原理簡單卻快捷可靠。這種設計從根源上杜絕了帶負荷插拔帶來的安全風險，保障了配電系統的穩定運行和操作人員的安全。對山東本地的企業來說，在選用MNS低壓抽屜柜時，要注意確認這套機械聯鎖結構的完整性和可靠性——比如轉動手柄時連桿運動是否順暢、合閘后鎖定是否牢固。了解這個簡單的原理，不僅能讓我們更安全地使用設備，也能在日常維護中快速判斷相關部件是否正常。如果大家在使用山東MNS低壓抽屜柜時遇到相關問題，不妨先檢查一下這三個關鍵部件的聯動情況，大概率能找到問題所在。

　　In summary, the Shandong MNS low-voltage drawer cabinet relies on the mechanical interlocking design of "handle link bottom plate" to prevent load insertion and removal, which is simple in principle but efficient and reliable. This design fundamentally eliminates the safety risks caused by load swapping, ensuring the stable operation of the distribution system and the safety of operators. For local enterprises in Shandong, when selecting MNS low-voltage drawer cabinets, attention should be paid to confirming the integrity and reliability of the mechanical interlocking structure, such as whether the connecting rod moves smoothly when turning the handle and whether the lock is firm after closing. Understanding this simple principle not only allows us to use the equipment more safely, but also enables us to quickly determine whether the relevant components are functioning properly during daily maintenance. If you encounter any related problems when using Shandong MNS low-voltage drawer cabinets, you may want to check the linkage of these three key components first, and most likely find the problem.
